This documentation file explains how to start a development server on your machine, and how it works under the hood.

How to run the project on my local computer

Use phpstorm to run a local php server:

Go to configuration > add new configuration
Select "PHP Built-in Web Server", then enter options as follow:
- port 8080
- name the configuration "RunServer" to be more explicit
- place the "Document Root" in /public
- host is localhost
Click apply, OK
Now run it.

If you go to http://localhost:8080 you'll see a blank page.
This is expected ! On your browser, open inspection tab (ctrl+shift+i) go to network and refresh the page.

We can see that the browser requested the SampleForm.tsx react view (located in /front/views), but the server could not find it.
But, on what server was it requested ?
Remember that the localhost:8080 is a php server, and thus not able to handle requests about our react / typescript files.
If we take a look at the request, we'll see that the url does not targets localhost:8080, but localhost:5173.

localhost:5173 is the react development server, it is able to serve our react front view files.
Let's run the react development server.
It is a simple as running npm start in a new terminal (be sure to run it in the repository's directory).

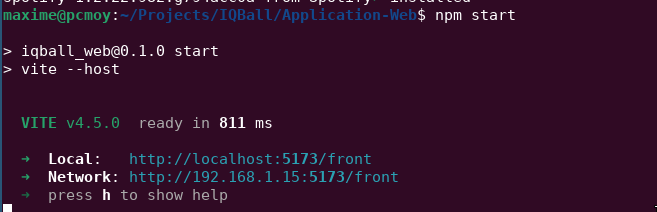

You should see something like this, it says that the server was opened on port 5173, thats our react development server !

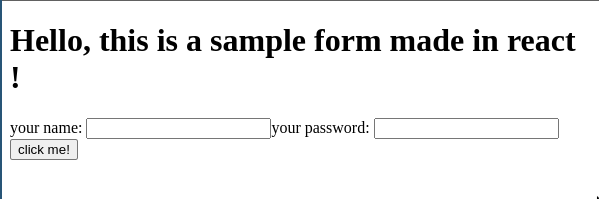

Now refresh your page, you should now see all request being fulfilled and a form appearing !

Caution: NEVER directly connect on the localhost:5173 node development server, always pass through the php (localhost:8080) server.

How it works

I'm glad you are interested in how that stuff works, it's a bit tricky, lets go.
If you look at our index.php (located in /public folder), you'll see that it is our gateway, it uses an AltoRouter that dispatches the request's process to a controller.
We can see that there are two registered routes, the GET:/ (that then calls SampleFormController#displayForm()) and POST:/result (that calls SampleFormController#displayResults()).
Implementation of those two methods are very simple: there is no verification to make nor model to control, thus they directly sends the view back to the client.

here's the implementation of the SampleFormController

require_once "react-display.php";
class SampleFormController {
    public function displayForm() {
        send_react_front("views/SampleForm.tsx", []);
    }

    public function displayResults(array $request) {
        send_react_front("views/DisplayResults.tsx", $request);
    }
}

As our views are now done using react (and defined under the front/views folder), we need to use the send_react_front($viewURI, $viewArguments) php function (located in the src/react-render.php file).

If you look at the send_react_front($viewURI, $viewArguments) function, you'll see that is simply loads the file src/react-display-file.php with given arguments.
The file is a simple html5 template with a <script> block in the <body> section.
The script block imports the requested view and will render it using a specific render(any) function.
This function must figure in the imported view file in order to work.

<!--
here's the magic.
imports the given view URL, and assume that the view exports a function named `render` that
takes exactly one object argument.
If the imported file does not export a function with signature `render(arguments: any)`,
the call wont work thus the view will not be displayed
-->
<script type="module">
    import {render} from "<?= asset($url) ?>"
    render(<?= json_encode($arguments) ?>)
</script>

here's how it renders if you do a request to http://localhost:8080/.

The index.php's router says that for a GET on the / url, we call the SampleFormController#displayForm method.
This method then uses the send_react_front, to render the views/SampleForm.tsx react element, with no arguments (an empty array).
You can see that the react view is rendered using a render function. This function must figure in the view's file, and be exported.
We'll talk about an important coding convention about views that this script block implies later.

But now let's talk about our server profiles !

Server Profiles

If you go on the staging server, you'll see that, for the exact same request equivalent, the generated render-react-file file changes :
(we can also see that much less files are downloaded than with our localhost aka development server).

Remember that react components and typescript files needs to be transpiled to javascript before being executable by a browser.
The generated file no longer requests the view to a localhost:5173 or a maxou.dev:5173 server, Now our react components are directly served by the same server, as they has been pre-compiled by our CI (see /ci/.drone.yml and /ci/build_react.msh) into valid js files that can directly be send to the browser.
If you go back to our index.php file, you'll see that it requires a ../config.php file, if you open it, you'll see that it defines an asset(string $uri) function.
By default, the /config.php file uses the dev-config-profile.php profile, the file is replaced with prod-config-file.php by the CI when deploying to the staging server (see the pipeline "prepare php" step in /ci/.drone.yml)

The two profiles declares a _asset(string $uri) function, used by the /config.php::asset method, but with different implementations :

Development profile

const FRONT_URL_CONSTANT = "http://localhost:5173";

function _asset(string $assetURI): string {
    return FRONT_URL_CONSTANT . "/" . $assetURI;
}

The simplest profile, simply redirect all assets to the development server

Production profile

Before the CD deploys the generated files to the server, it'll generate a /views-mappings.php file that will map the react views file names to their compiled javascript files :

const ASSETS = [
    // react / typescript path (relative to /front) => its compiled js file name.
	'views/SampleForm.tsx' => 'front/views/SampleForm.tsx-82fdeb9a.js',
	'views/DisplayResults.tsx' => 'front/views/DisplayResults.tsx-ed098cf4.js',
	... // other files that does not have to be directly used by the `send_react_front()` function
];

The _asset function will then get the right javascript for the given typescript file.

require "../views-mappings.php";

function _asset(string $assetURI): string {
    // use index.php's base path
    global $basePath;
    // If the asset uri does not figure in the available assets array,
    // fallback to the uri itself.
    return $basePath . "/" . (ASSETS[$assetURI] ?? $assetURI);
}

React views conventions.

Conventions regarding our react views must be respected in order to be renderable.

The `render(any)` function

any react view file should export a function with signature render(arguments: any), which responsibility is to render the view.
The arguments parameter is used to pass data to the react component.

If you take a look at the front/views/SampleForm.tsx view, here's the definition of its render function :

/// Here's the definition of the view
function SampleForm() {
	... react jsx code here
}

// the `SampleForm` does not inputs arguments but the parameter IS STILL REQUIRED
export function render(args: any) {
    const root = ReactDOM.createRoot(
        document.getElementById('root') as HTMLElement
    );
    root.render(
        <React.StrictMode>
            <SampleForm /> //here's our view component
        </React.StrictMode>
    );
}

Pass arguments to our react views

We'll take the example of the view in charge of displaying the SimpleForm's fields values.
First, let's take a look at its React Component definition :

function DisplayResults({password, username}: any) {
    return (
        <div>
            <p>username: {username}</p> //arguments are used heres
            <p>password: {password}</p>
        </div>
    )
}

The components takes two arguments, a username and password string.

Now, let's take a look at its render function :

export function render(args: any) {
    const root = ReactDOM.createRoot(
        document.getElementById('root') as HTMLElement
    );
    root.render(
        <React.StrictMode>
            <DisplayResults username={args.name} password={args.password} />
        </React.StrictMode>
    );
}

let's take a look at this line:

<DisplayResults username={args.name} password={args.password} />

DisplayResults is the name of our React Component (the function).
To pass arguments to the DisplayResults function, we use the syntax <function parameter name>={value}. (somewhat like regular html/xml components).
Use the render's function args parameter to access to the php's array values (see below).

So now we have defined our react view, let's send it to the user's browser from php.

To render the DisplayResults view, we'll use the send_react_front():

require_once "react-display.php";
...
send_react_front(
        "views/DisplayResults.tsx", // view file location, relative to the `/front` folder.
        array("name" => "samuel barion", "password" => "1234") //our function's arguments
)

NOTE: in the project, the $_POST is placed instead of the hardcoded array, as the $_POST is an array containing the "name" and "password" keys. (regarding the SampleForm's form inputs names)).
